Drawings showing magnetic automatic filters
Type 12.15/2-01 to 10
Magnetic roller Ø 130
1-520 l/min - emulsion or 1-310 l/min oil (guide values)

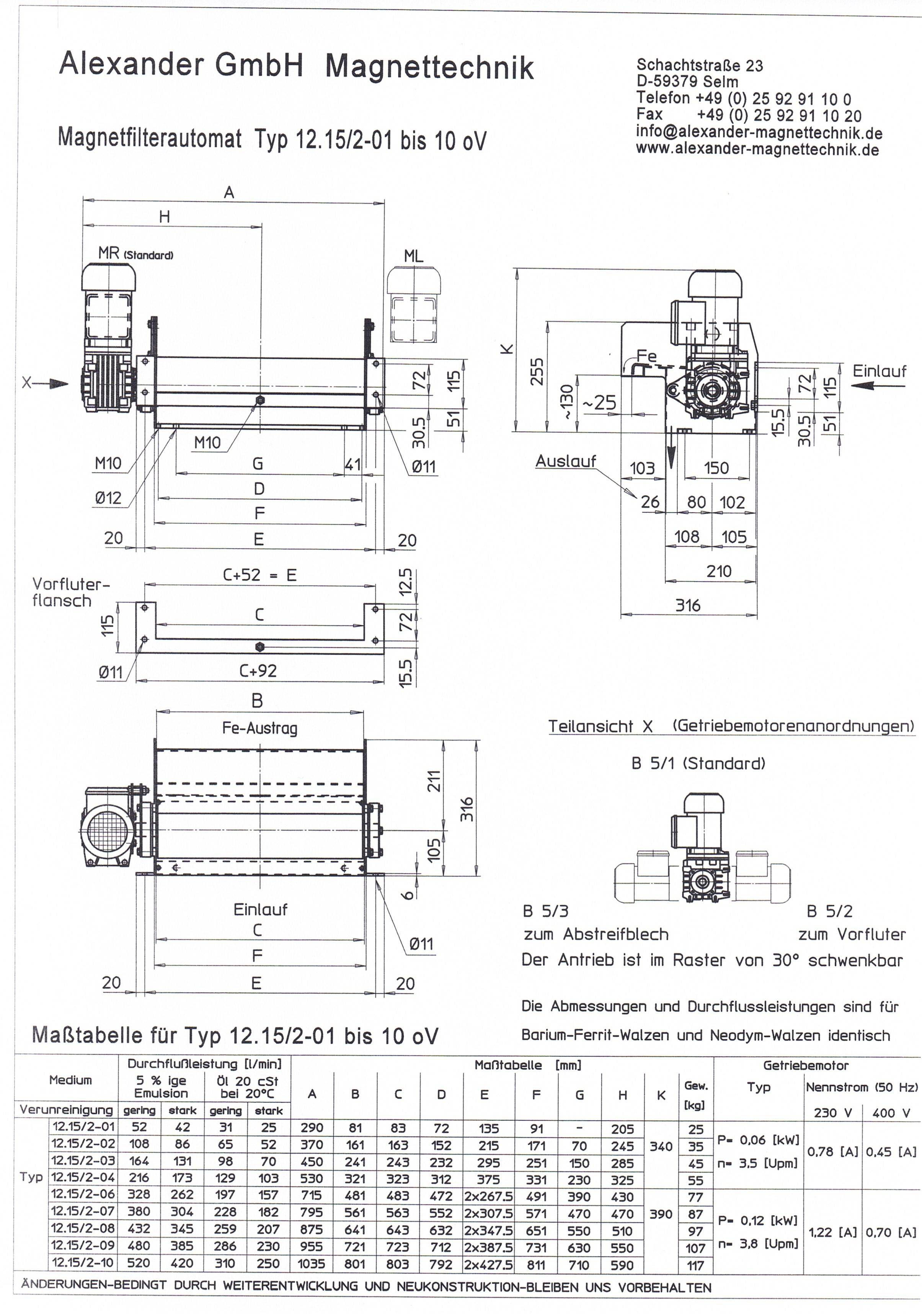

Overview - Magnetic automatic filters with receiving water type 12.15/2-01 to 10

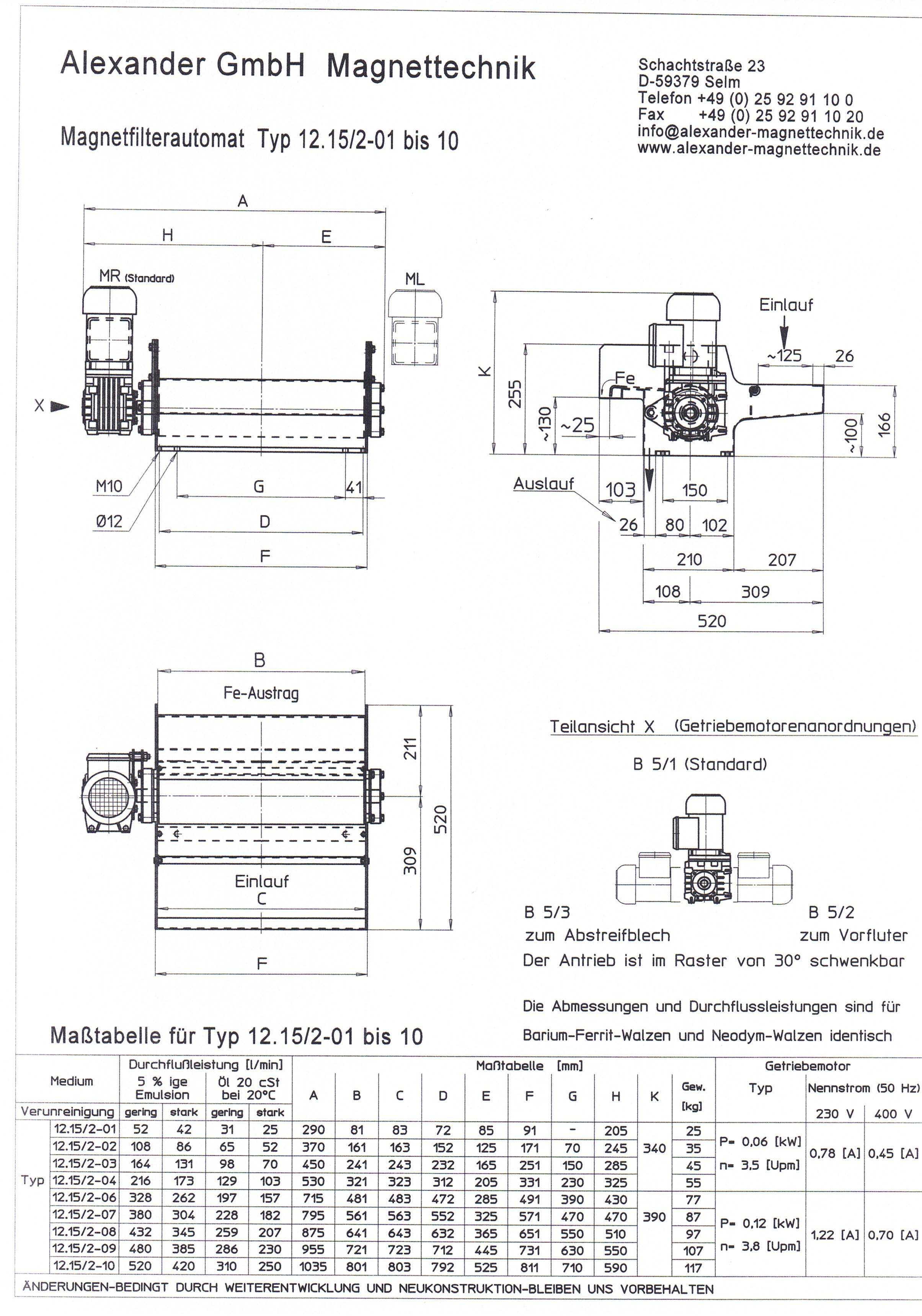

Overview - Magnetic automatic filters without receiving water type 12.15/2-01 to 10
Drawings showing magnetic automatic filters
Type 12.15/2-14 to 22
Magnetic roller Ø 220
from approx. 400 to 1555 l/min - emulsion or from approx. 200 to 970 l/min oil (guide values)

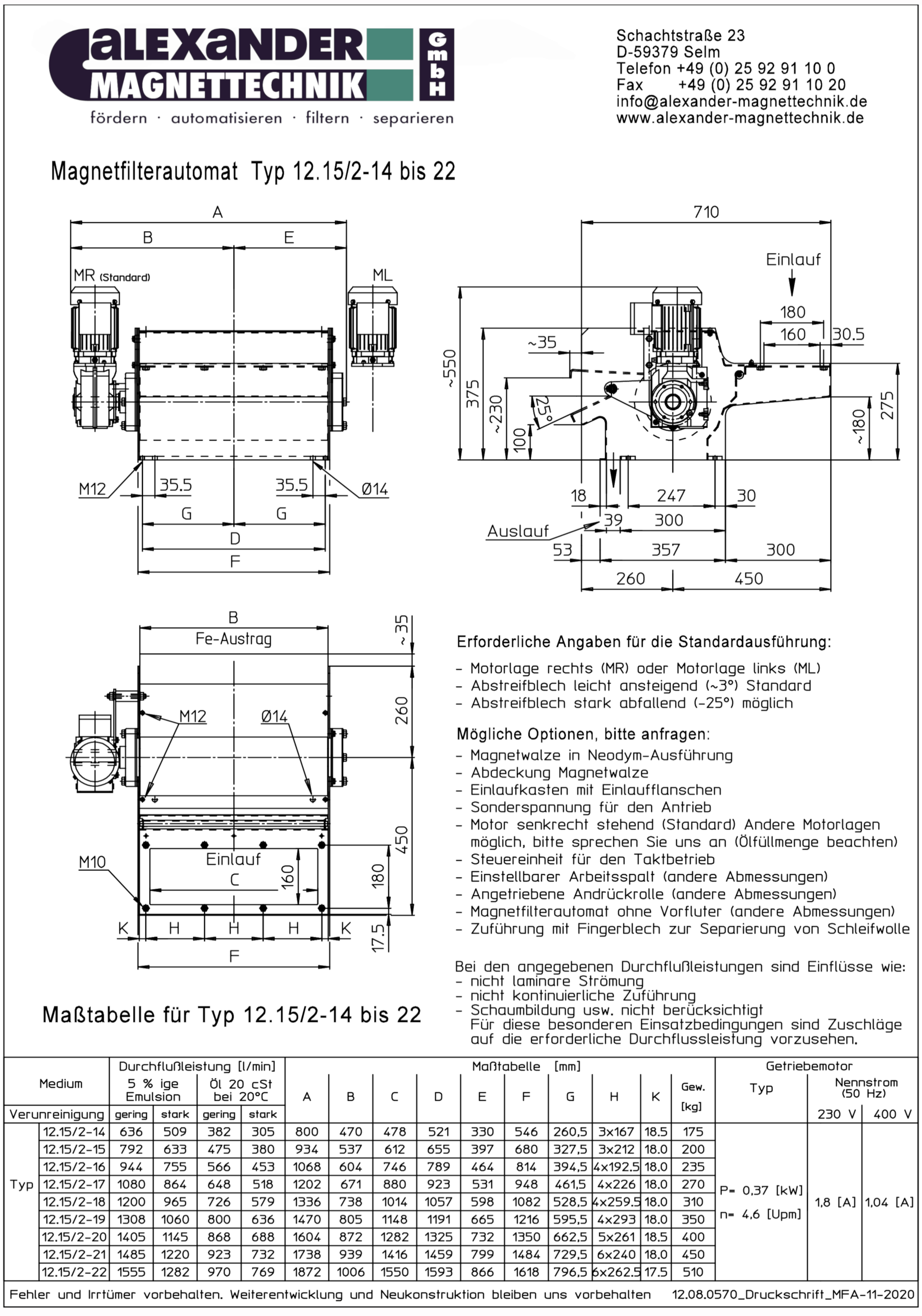

Overview - Magnetic automatic filters with receiving water type 12.15/2-14 to 22
The remaining general arrangement drawings are still in work.If you have a requirement of this magnitude, please contact us and you will shortly receive a sketch/drawing in response to your inquiry and requirements, or in conjunction with a quotation.
Drawings "Central filter systems" NEODYM - Magnetic roller Ø 273
from approx. 1500 l/min - emulsion or from approx. 1000 l/min oil (guide values)
Systems of this size and above are tailored directly to your requirements, so you will receive a sketch/drawing in response to your inquiry and requirements, or in conjunction with a quotation.
